Architects have an opportunity to shape the delivery system, not merely adapt drawings to it later.

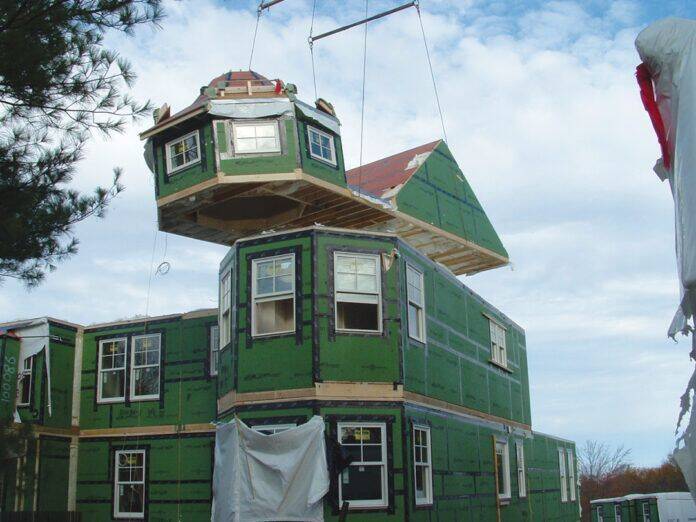

Look closely at the photograph. That is not a rendering. It is not a prototype. And it is not a vision of what modular construction might someday become. That is a highly articulated section of a custom home flying through the air on its way to becoming part of a finished building. Which raises a question I think the architectural community needs to confront: If modular can deliver this level of architectural complexity, why are we still talking about it as though design freedom is the problem?
I recently revisited an OFFSITE Builder Magazine article by Reed Dillon examining how architects are engaging with modular construction. The divide he described is still important. Some architects have learned to design for the delivery system. Others still approach modular as though a conventional building can be fully designed first and then handed to a factory to be “modularized.” That can work, but it gives away much of the opportunity before the manufacturer ever sees the drawings.
Modular Is a Delivery-System Decision
Modular is not a product decision. It is a delivery-system decision. Understanding how modular homes are built in the factory makes that distinction obvious. The building is broken into transportable three-dimensional sections, produced through a controlled sequence, inspected during production, shipped, craned onto a permanent foundation, connected, and completed on site. Architecture, engineering, manufacturing, transportation, site work, and assembly are therefore parts of one system.
If the architect designs without understanding that system, the project team is forced to solve manufacturing and logistics problems after many of the most important design decisions have already been made. If the architect understands the system from the beginning, those same constraints can become design inputs rather than late-stage surprises.
The Box Is Not the Design Limit
The persistent misconception is that modular automatically means repetitive boxes with limited architectural expression. In reality, customizing a modular floor plan can include substantial changes to layouts, windows, ceiling heights, roof forms, finishes, and exterior character. The constraints are real, but they are engineering and logistics constraints, not a prohibition on architecture.
Module width matters because the building has to travel on public roads. Structural interfaces matter because sections have to survive transportation and lifting. Marriage lines matter because modules have to connect accurately in the field. Open spans, offsets, roof geometry, cantilevers, and large glazed areas may require additional engineering. None of that eliminates design. It means design has to understand production.
Architects already design within systems. Structural grids, egress, accessibility, energy codes, mechanical zones, budgets, zoning envelopes, and material properties all influence architecture. Designing for manufacturing and assembly is another layer of discipline, not the abandonment of creativity.
The Photograph Is Really About Coordination
What makes the photograph interesting is not simply that a complicated module can be lifted by a crane. The more important story is everything that had to be resolved before the lift happened. Transportation logistics influence module dimensions, route planning, height, weight, turning radius, crane reach, staging, utility conflicts, and site access. Those considerations reach all the way back into design.
That is why the best modular projects do not treat the architect, factory, engineer, transporter, crane operator, site contractor, and builder as independent participants passing information downstream. They operate more like an integrated production team. Decisions are made earlier because downstream consequences are understood earlier.
This is also where precision becomes part of the culture. A quarter inch matters. Foundation dimensions matter. Crane placement matters. Tolerance stacking matters. Connection details matter. What can look obsessive from the outside is simply what happens when field improvisation is replaced by coordinated production.
Earlier Decisions Are Not Less Design
One of the criticisms of modular is that decisions have to be made earlier. That is true. But we should be careful about calling that a limitation. Earlier decisions can reduce change orders, redesign, field conflicts, procurement uncertainty, and schedule disruption. The discipline is front-loaded because the factory cannot efficiently operate as a place where major design decisions are still being debated after production begins.
This is the same reason the broader modular construction process works differently from conventional field construction. Factory production rewards complete information, repeatable details, coordinated interfaces, and decisions made at the right time. The architectural opportunity is to use that discipline to improve the project rather than fight it.
Architects Can Change the Economics
This matters beyond single-family housing. Developers are under pressure from labor availability, carrying costs, schedule risk, financing, and increasingly complicated project coordination. An architect who understands industrialized delivery can do more than produce a compelling building. That architect can influence whether the project is manufacturable, transportable, repeatable, scalable, and economically viable.
That does not mean every project should be modular. Some sites, geometries, programs, and volumes will favor other systems. The more useful question is whether the design team understands the available production systems early enough to select and optimize the right one.
Factory construction is powerful precisely because it turns much of construction into a managed production process. The principles behind getting modular construction fast and right are centralization, repeatability, controlled workflow, coordinated labor, and quality control. Architects who understand those principles can design with the production system instead of designing around it after the fact.
The Architectural Toolkit Needs to Expand
The industry does not need architects to become factory managers or crane operators. It needs architects who understand enough about manufacturing, transportation, assembly, and tolerances to know when those realities should influence the design.
That is a different skill set from simply drawing a building and asking whether somebody can modularize it later. It is closer to design for manufacturing and assembly: architecture developed with a clear understanding of how the building will actually be produced, moved, connected, and completed.
So look at the photograph again. The capability is clearly there. The larger opportunity is getting design, manufacturing, engineering, logistics, and construction working as one coordinated delivery system.
Architects, I would particularly like to hear from you: What is still preventing modular and industrialized construction from becoming part of the standard architectural toolkit?
